UNSOLVED OrangePi cm5-tablet RAW-MIPI-SC132M

zoldaten

@veye_xumm and could you check steps it did before start build process:

sudo cp -r rk35xx_orangepi/linux/drivers/cm5/cm5-mvcam-dts orangepi-build/kernel/orange-pi-5.10-rk35xx/arch/arm64/boot/dts/rockchip/
sudo cp rk35xx_orangepi/linux/drivers/cm5/config/linux-rockchip-rk3588-legacy.config orangepi-build/external/config/kernel/linux-rockchip-rk3588-legacy.config
sudo cp -r rk35xx_veye_bsp/linux/drivers/kernel_v5.10 orangepi-build/kernel/orange-pi-5.10-rk35xx/drivers/media/i2c/

sudo nano orangepi-build/kernel/orange-pi-5.10-rk35xx/drivers/media/i2c/Kconfig
config VIDEO_DS90UB954
       tristate "TI FDPLINK III support."
       depends on I2C && VIDEO_V4L2 && VIDEO_V4L2_SUBDEV_API
       help
            Driver for TI FDPLINK III .

config VIDEO_VEYECAM2M
       tristate "VEYE 2M camera support."
       depends on I2C && VIDEO_V4L2 && VIDEO_V4L2_SUBDEV_API
       depends on MEDIA_CAMERA_SUPPORT
       help
               Driver for veye 2m camera.

config VIDEO_VEYEMVCAM
       tristate "VEYE MV series camera support."
       depends on I2C && VIDEO_V4L2 && VIDEO_V4L2_SUBDEV_API
       depends on MEDIA_CAMERA_SUPPORT
       help
               Driver for veye mv series camera.

config VIDEO_VEYEVBYONE
       tristate "VEYE V-by-One hs toolkit support."
       depends on I2C && VIDEO_V4L2 && VIDEO_V4L2_SUBDEV_API
       depends on MEDIA_CAMERA_SUPPORT
       help
               Driver for vV-by-One hs toolkit .

sudo nano orangepi-build/kernel/orange-pi-5.10-rk35xx/drivers/media/i2c/Makefile
obj-$(CONFIG_VIDEO_DS90UB954) += ds90ub954.o
obj-$(CONFIG_VIDEO_VEYEVBYONE) += veye_vbyone.o
obj-$(CONFIG_VIDEO_VEYECAM2M) += veyecam2m.o
obj-$(CONFIG_VIDEO_VEYEMVCAM) += veye_mvcam.o

may be i miss something leads to empty image ?

veye_xumm

@zoldaten
In the source code of veyecam2m.c, please comment out this function.

Additionally, since you are using the RAW-MIPI-SC132M camera, you only need the mvcam driver and its corresponding dtb.

zoldaten

@veye_xumm ok. i just del it and remove from Makefile.
and changed in main dts - uncomment camera-1.
build kernel package without full image.
installed to jammy 20.04 via dpkg.
and... my mixed cams start working !

later i`ll tried to repair broken driver for veye you provided.

thanks for help!

veye_xumm

@zoldaten looking forward to your good news.

zoldaten

@veye_xumm hi. could you provide link to image kernel 6.* image with cameras integrated ?
as far as i saw there are only kernel 5.10 links...

veye_xumm

@zoldaten Sorry, we currently only provide kernel version 5.x images for Orange Pi. If you need version 6.x, you will need to compile it yourself based on our open-source code.

zoldaten

@veye_xumm got it. i tried to do that but have segmentation fault - something wrong with mali drivers. at the same time drivers for cameras built correctly.

zoldaten

@veye_xumm

@veye_xumm said in OrangePi cm5-tablet RAW-MIPI-SC132M:

@zoldaten Sorry, we currently only provide kernel version 5.x images for Orange Pi. If you need version 6.x, you will need to compile it yourself based on our open-source code.

hi. i built kernel 6.1.99 - but the errors almost the same as in start of the spoiler to this topic:

in build progress i saw strange missing packages errors.
could your check your instructions ? may be them got obsolete ?

veye_xumm

@zoldaten You can ignore the warning shown in your screenshot. However, your probe information is incomplete; it seems that the mvcam probe function has not been triggered.

zoldaten

@veye_xumm i think so.

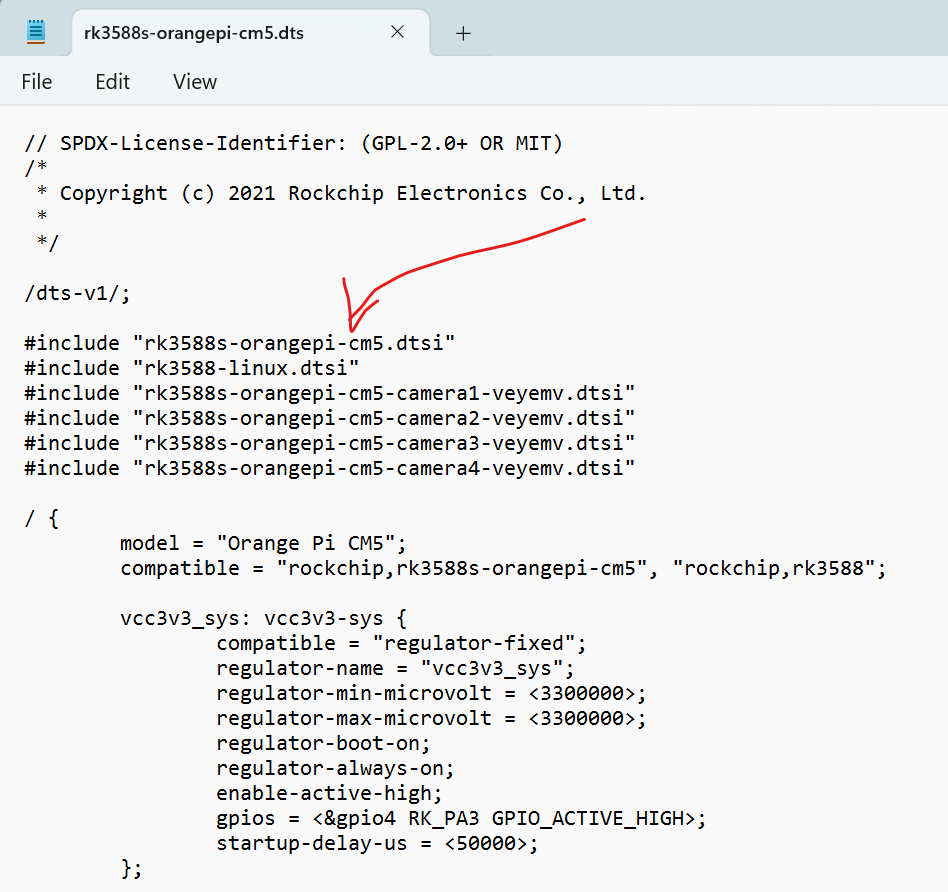

please see screens attached:

when i copied .dts files from veye i saw errors building missing files.

i tried to build on:

orange pi 5 tablet
VM machine with Ubuntu 22.04 installed
got the same errors.
please check your files.
